Transformer Feeder Type-T

Deskripsi

MV GAS INSULATED SWITCHGEAR

Transformer feeder Type-T

IEC  62271-1   24kV, 200A,20kA

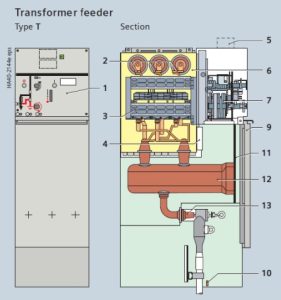

1. Control board (for details, see page 23)
2. Busbar arrangement
3. Three-position switch-disconnector
4. Pressure relief device
5. Wiring duct, removable, for protection
and/ or bus wires
6. Switchgear vessel, fi lled with gas
7. Operating mechanism of switching device
8. Bushing for cable plug with bolted contact(M16)
9. Cable compartment cover
10. Earthing busbar with earthing connection
(design option)
13. Bushing for cable plug with plug-in contact,
optionally bolted contact (M16)
14. Vacuum circuit-breaker
15. Circuit-breaker operating mechanism,
operating mechanism for three-position
disconnector
