| Thumbnail | SKU | Type | Motor Power (kW) | Max. continuous output current (A) | Quantity | ||
|---|---|---|---|---|---|---|---|
|
|
2000 8616 | Single-phase | 0.18 | 1.5 |
|
||
|
|
2000 8617 | Single-phase | 0.37 | 3.3 |
|
||
|
|
2000 8618 | Single-phase | 0.55 | 3.7 |
|
||
|
|
2000 8619 | Single-phase | 0.75 | 4.8 |
|
||
|
|
2000 8620 | Single-phase | 1.1 | 6.9 |
|
||
|
|
2000 8621 | Single-phase | 1.5 | 8 |
|
||
|
|
2000 8622 | Single-phase | 2.2 | 11 |
|
||
|
|
2000 8623 | Three-phase | 0.37 | 1.5 |
|
||
|
|
2000 8624 | Three-phase | 0.55 | 1.9 |
|
||
|
|
2000 8625 | Three-phase | 0.75 | 2.3 |
|
||
|
|
2000 8626 | Three-phase | 1.1 | 3 |
|
||
|
|
2000 8627 | Three-phase | 1.5 | 4.1 |
|
||
|
|
2000 8628 | Three-phase | 2.2 | 5.5 |
|
||
|
|
2000 8629 | Three-phase | 3 | 7.1 |
|
||
|
|
2000 8630 | Three-phase | 4 | 9.5 |
|
||
|
2000 8631 | Three-phase | 5.5 | 14.3 |
|
||
|
|
2000 8632 | Three-phase | 7.5 | 17 |
|
• Certifications : IEC 61800-5-1, IEC 61800-3 (environments 1 and 2, category C2, C3), UL 508C, IEC 61800-5-2 up to SIL3 level, IEC 61508 up to SIL 3 level, IEC 13849-1 up to PLe level, IEC 60204-1, IEC 62061, EN 954-1 category 3, Draft standard EN 50495E, IEC 60721-3-3(Class 3C3,Class 3S2), EN/IEC 60068-2, IEC 60068-2-3, EN/IEC 61800-5-1, 86/188/EEC
• Control of asynchronous and snychronous motors; including IE2, IE3 and PM motors in open loop
• MachineStruxure integration in SoMachine
• Operation in Velocity mode and Torque control (with current limitation)
•Customizable and flexible application functions with ATV Logic (up to 50 function blocks)
•Numerous application functions for targeted application segments
•Embedded safety functions dedicated to targeted application segments

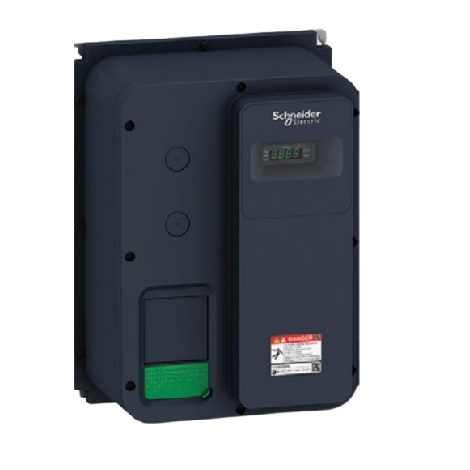

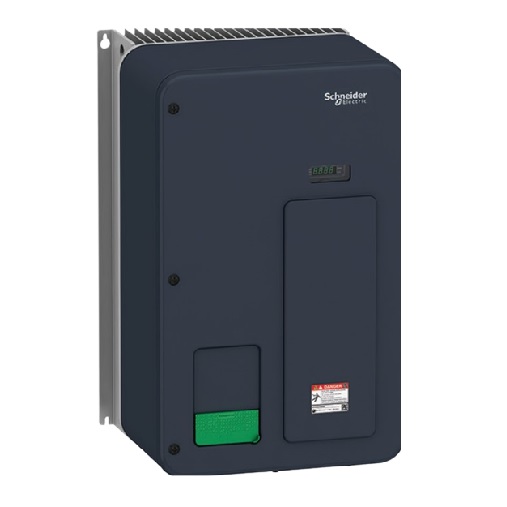

Drives for harsh environment IP66/IP65
Single-phase supply voltage: 200…240 V 50/60 Hz, with integrated EMC filter, IP66 (5)
| Motor Power | Max. continuous output current (In) |
| kW(1) | (A) |
| 0.18 | 1.5 |
| 0.37 | 3.3 |
| 0.55 | 3.7 |
| 0.75 | 4.8 |
| 1.1 | 6.9 |
| 1.5 | 8 |
| 2.2 | 11 |
Three-phase supply voltage: 380…500 V 50/60 Hz, with integrated EMC filter, IP66 (5)
| Motor Power | Max. continuous output current (In) |
| 0.37 | 1.5 |
| 0.55 | 1.9 |
| 0.75 | 2.3 |
| 1.1 | 3 |
| 1.5 | 4.1 |
| 2.2 | 5.5 |
| 3 | 7.1 |
| 4 | 9.5 |
| 5.5 | 14.3 |
| 7.5 | 17 |
| Brand | |
|---|---|
| Type | Single-phase, Three-phase |
| Motor Power (kW) | 0.18, 0.37, 0.55, 0.75, 1.1, 1.5, 2.2, 3, 4, 5.5, 7.5 |
| Max. continuous output current (A) | 1.5, 3.3, 3.7, 4.8, 6.9, 8, 11, 1.9, 2.3, 3, 4.1, 5.5, 7.1, 9.5, 14.3, 17 |
